Product details
M/Board For AMD Ryzen Processor 9000/8000/7000 Series

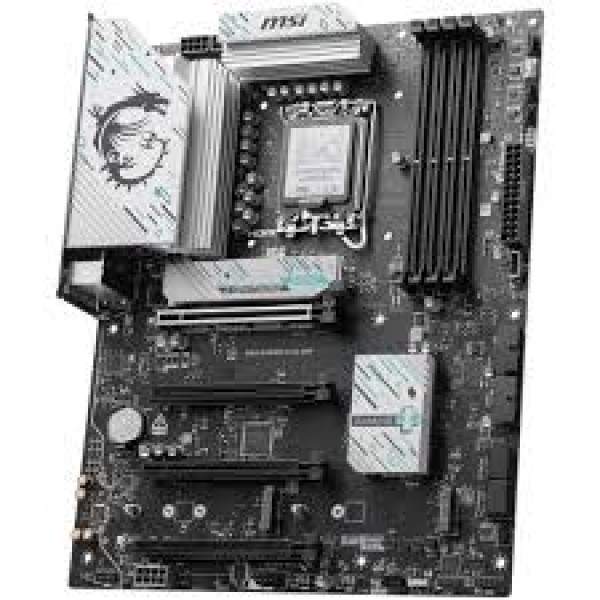

MPG B860 Gaming Plus Wi-Fi
- 15th Gen / Ultra Series-2 Intel, ATX Form Factor,
- 1x PCI-E 5.0 x16 EZ PCIe Clip II with Steel Armor,
- 2x PCI-E 4.0 x4, 1x PCI-E 4.0 x1,
- 1x HDMI 2.1,
- 1x DisplayPort 1.4,
- 1x Thunderbolt 4 Port / DP 8K@60Hz,
- 4x RAM Slot (Max. 256GB,
- 4800 to 8600+ MHz),
- 3x M.2 (1x Gen5 + 2x Gen4),
- 4x SATA, RAID 0/1/5/10,
- 1x USB 3.2 Gen2 (2x Type-A Back + 1x Type-C Internal Connector),
- 6x USB 3.2 Gen1 (2x Back + 4x Internal Connector),
- 8x USB 2.0 (4x Back + 4x Internal Connctor),
- 1x Killer 5Gbps LAN,
- Intel® Killer Wi-Fi 7 + Bluetooth 5.4,
- Realtek® ALC897 Codec 7.1 Channel HD Audio,
- 1x M.2 Shield Frozr, 8+4-Pin CPU Connector,
- 12+1+1+1 Digital CPU Power System,
- Server-grade 6 Layers PCB,
- Premium Thermal Solution,
- 2x ARGB (JARGB V2),
- 1x 8-Pin PCIE PWR Connector,
- Ready for AI PC
